Facit Technologies can digitally manufacture a home in your driveway
I have admired this system since 2007 and it is now breaking out of its box.
Twenty years ago, I was struggling to sell the idea of modular prefabricated housing in Ontario, Canada. The company I represented built high-quality modular boxes and shipped them as extra-wide loads to sites where expensive cranes lifted them into place. We used to say, “You wouldn’t build your car in your driveway; why would you build your house in a field?” But building your house in a big, expensive factory and shipping it long distances was not without its problems and limitations. I remember one set where the crane had to work fast as it sank into the mud as quickly as it lifted the box. Many of the economies from building in the factory were lost because of the expensive transport and crane rentals. Sales were limited by range and borders.

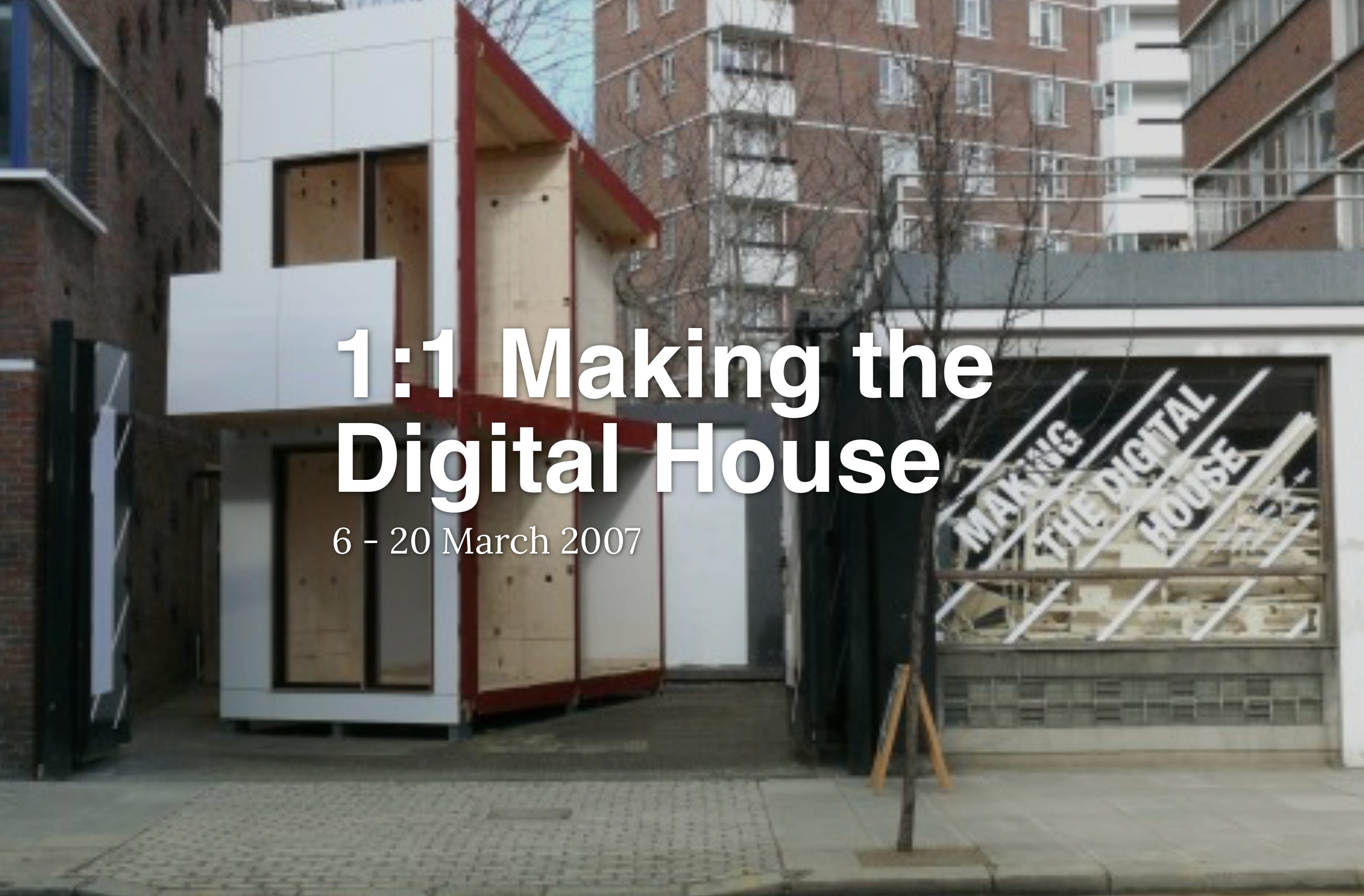

In 2007, sister Bonnie discovered an exhibition, 1:1 Making the Digital House in London. I marvelled at how “The Digital House is produced using a detailed 3D computer model that contains all of the construction elements, including every wall and screw hole, which are pre-determined before the construction.” I concluded:
“Imagine ordering a custom house and getting a pile of plywood, cutting it up and banging into into boxes, connecting lightweight, manageable pieces without a crane, living in a house where the framing is furniture quality, and you don't even want to cover it with drywall. This is truly the future.”
You literally got the factory in your driveway. You weren’t shipping big boxes of air hundreds of kilometres. It was brilliant.

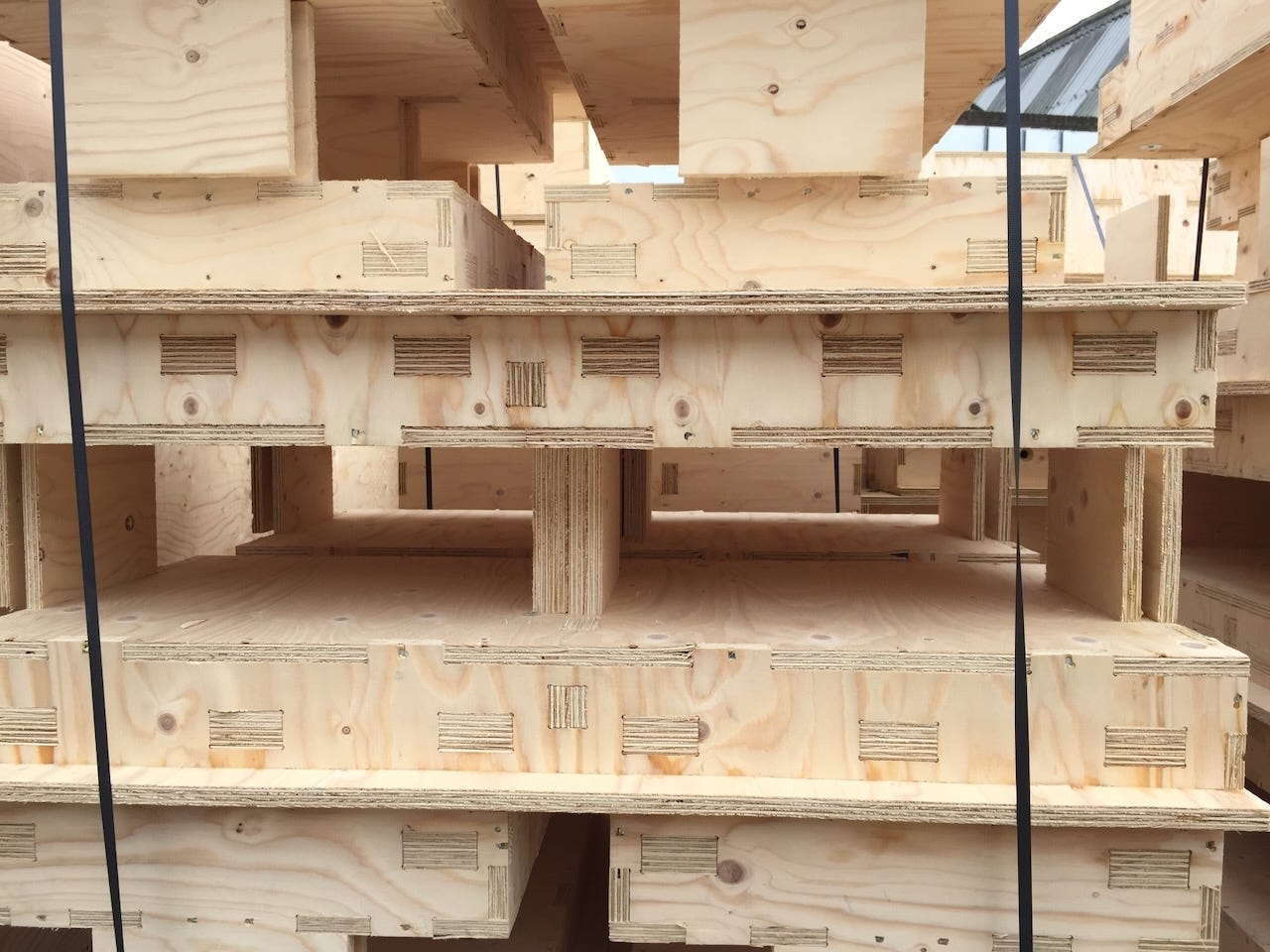

Bruce Bell founded Facit Homes to take the concept to market. Usually, they would deliver a shipping container with the CNC machine along with a stack of plywood. The plywood was then cut and assembled into boxes or cassettes, which were light enough for two workers to lift into place without a crane. Plywood boxes are strong, so they use a lot less fibre than mass timber, with a nice big void inside that can be filled with cellulose insulation. Hammer all the boxes into place and you have the makings of a house.
I thought it was a dream come true. In 2007, I wrote, “Since the early days of computer-aided design, the holy grail has been to not simply draw the building, but to build it in the computer and then drive the machinery to build it for real.” There has been a lot of progress since then, but I thought this was truly the first 3D-printed house to go straight from digital to real. Over the years, I looked at what Facit was doing, but it was being used for a few high-end single-family houses while the world went gaga over 3D printing by squeezing carbon-intense cement out of nozzles; I wondered why are they missing this high-fibre carbon-storing digital fabrication happening now?

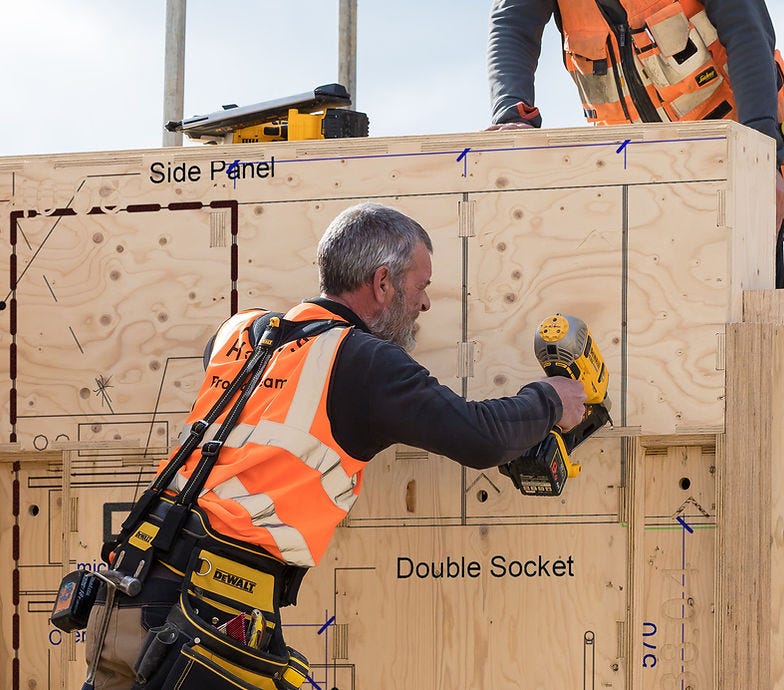

In the ten years since I saw it, Facit’s machinery has become a lot more sophisticated; a printer puts all the instructions and details that you would see in architectural or engineering drawings right on the plywood, so it becomes much harder to screw up.
Bruce Bell tells me in a note: “The print system is really about quality control - us humans seem to generally be inept at reading drawings and setting items out in the correct location - the makes it foolproof - plus give options for more info- the right specific product info at the location where it is to be installed.”
It almost works like a big photocopier for plywood, feeding sheets in one side and precision-cut panels out the other side. All this automation lets it scale, turning out more cassettes in less time.

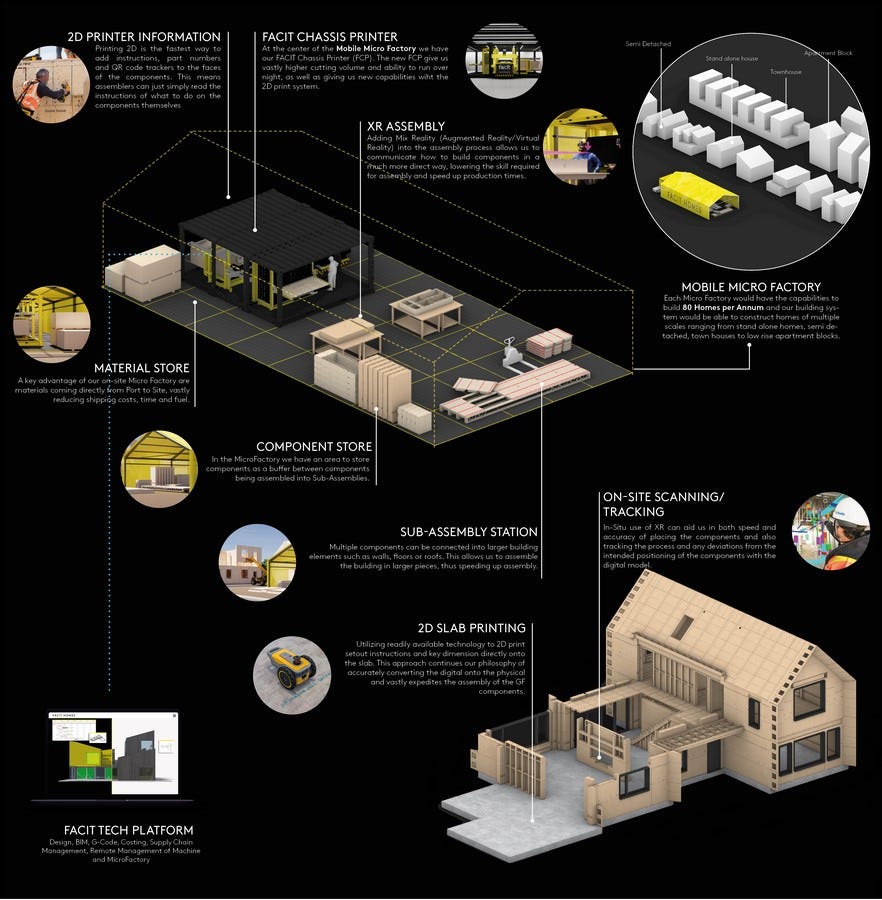

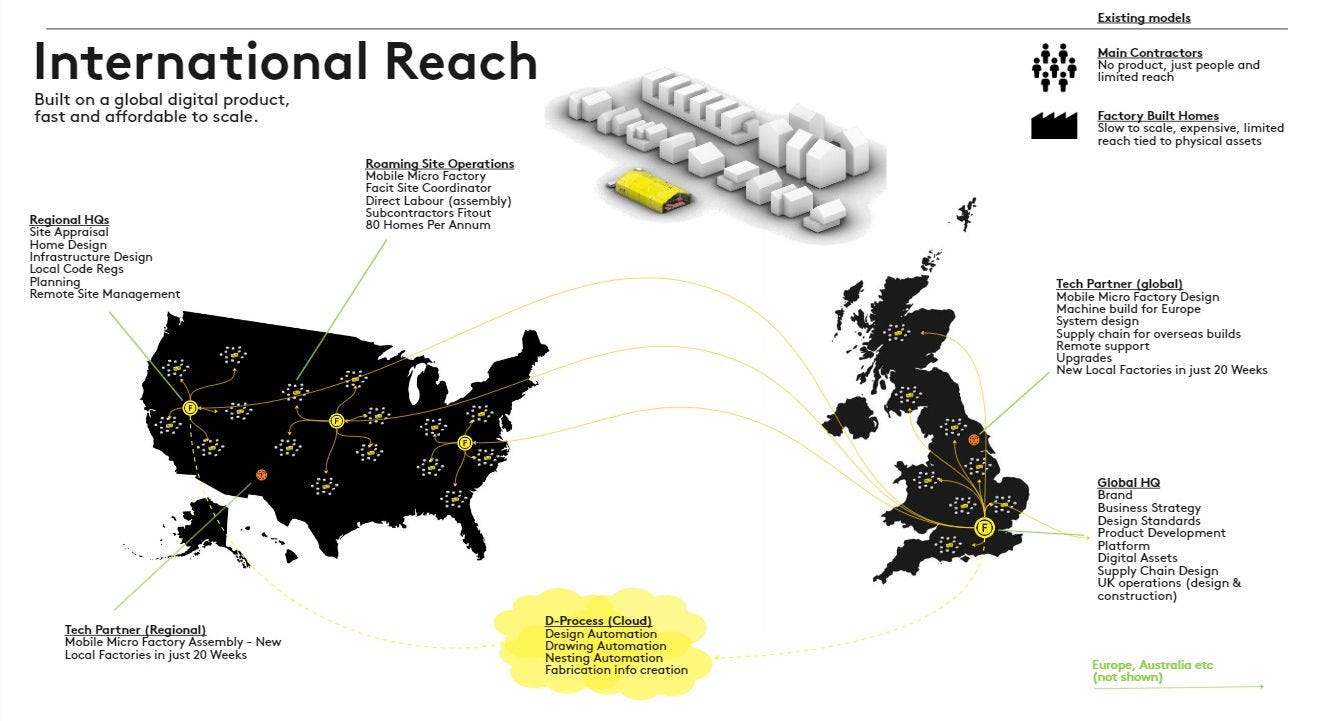

And scale they have, with Facit Technologies. They are moving beyond serving individual clients and going B2B (Business to Business), offering flying factories that can be assembled quickly and affordably out of three shipping containers.
Facit Technologies' plug-and-play manufacturing technology is compact and portable, capable of producing sophisticated, engineered timber building components on-demand at any site. Each micro-factory can manufacture up to 100 homes per year at a fraction of the capital cost of traditional factory-built homes, allowing it to manage demand fluctuations effectively while reducing CO2 emissions from transportation by 90%.
Why now? I wondered why this took so long for this brilliant idea to get out into the world. I asked Bruce Bell, and he explained:
“In terms of timing - we have been waiting for market conditions to change, which they now have- specifically the rise of cost of labour pushed the tipping point for our manufacturing to be commercially competitive about 18 months ago, the desire to build homes that save energy is really just since the recent hike in bills, and the change in consumer tastes towards a more modern aesthetic at large is also really the last three years.”
Every house might be different, but it’s the system that permits continuous improvement:
“We envision the home as a single, holistic product where every Facit Home incorporates common components tailored to developers' requirements through our powerful digital design tools. This approach lead to a truly sustainable home with each iteration performing better, costing less than the previous one and ensuring quality detailing throughout.”
One of the problems I go on about with mass timber is how much fibre it chews up, suggesting that good old stick framing makes more sense for low-rise buildings. But in many ways, the Facit system makes more sense; plywood is very efficient in its use of wood, and plywood boxes are very strong, making very efficient use of plywood.
Given the ubiquity of the 2x4 and the carpenters who knew how to hammer them together, it is not surprising that it took so long for Facit to gain ground. But the world is changing; trades are in short supply, and quality construction is critical to avoid air leakage and heat loss. Bruce Bell writes:
“Generally the skills shortage we see as not a problem of training but a problem of incentive- there is no shortage of people, just a shortage of people that want to work in construction as it’s antiquated and combative. If we create new types of jobs using technology that feel modern, safe and productive young people (men AND women) will want to be take part (it is a choice).”
I am excited to think that Facit Technologies might be coming to a wider audience soon; I have admired this system since 2007, and its time has come.
